Up to 45m Head
High pressure to lift water over long distances.
Peripheral Pump QB80
Self-priming peripheral pump for pressurization and residential water supply
The Atlantis Peripheral Pump QB80 is a surface motor pump designed for suction and discharge of clean water in residential, building, and small irrigation applications.
It operates out of water, above ground, suitable for suction depths up to 7 to 9 meters. Perfect for clean water transfer, domestic supply, pressurization systems, and small irrigation.
Features high pressure performance, capable of lifting water over great distances. Characterized by a radial impeller with peripheral blades (curved edges) that generate high pressure with relatively low flow.
Main Specifications
- Power: 750W (1 HP)
- Voltage: 127V / 220V (versions)
- Maximum flow: 2,850 to 3,300 L/h
- Maximum head: 45 m
- Maximum pressure: 8 mca
- Inlet / Outlet: 1" / 1"
- Rotation: 3,450 RPM
- Material: Bronze impeller, cast iron body
- Protection: IP44 — Class B insulation
- Warranty: 12 months
Indispensable quality at the power you need!
12-Month Warranty
Shipping Throughout Brazil
Specialized Technical Support
Made in Brazil
Flow up to 3,300 L/h
Ideal flow for residential supply and pressurization.
1 HP / 750W
Efficient power in compact and lightweight format.
IP44 + Class B
Splash protection and Class B thermal insulation.
Benefits
Developed to provide reliability in different clean water pumping applications.
Self-priming
Draws water from wells and cisterns up to 7-9m deep without external help.
High Pressure
Peripheral blade impeller generates high pressure for pressurized systems.
Robust Construction
Cast iron body and bronze impeller for maximum durability.
Quiet Operation
Low noise level ideal for residential use without disturbance.
Applications
Suitable for clean water pumping in different contexts.
Domestic supply and residential systems
Pressurization system for showers and faucets
Small irrigation, hydroponics and greenhouses
Water tank and reservoir filling
Technical Specifications
Reference values. Always consult the official product catalog.
Power
750W (1 HP)
Voltage
127V / 220V
Maximum Flow
2,850 to 3,300 L/h
Maximum Head
45 m
Max Pressure
8 mca / 8 bar
Inlet
1"
Outlet
1"
Rotation
3,450 RPM
Material
Bronze impeller / cast iron body
Weight
7.1 kg
Dimensions (HxWxD)
20 × 17.6 × 33 cm
Protection
IP44 — Class B insulation
Discover the QB80 Peripheral Pump — request a quote
Available Models
The line features variations of power, flow rate, and head.
Best Seller
QB80 127V
1 HP- Power: 750W
- Voltage: 127V
- Flow: 2.850 — 3.300 L/h
220V Version
QB80 220V
1 HP- Power: 750W
- Voltage: 220V
- Flow: 2.850 — 3.300 L/h
Economy
QB60 127V
1/2 HP- Power: 370W
- Voltage: 127V
- Flow: 1.800 — 2.100 L/h
Economy
QB60 220V
1/2 HP- Power: 370W
- Voltage: 220V
- Flow: 1.800 — 2.100 L/h
Installation Guide
Follow the guidelines below as a general reference.
1
Before installation, ensure the pump is properly grounded according to safety standards.
2
Install the pump above water level, in a dry, ventilated and rain-protected location.
3
Connect 1" suction piping with check valve (foot valve) on the inlet.
4
Connect 1" discharge piping on the outlet using properly sealed fittings.
5
Install a suitable circuit breaker for the motor current and protect with RCD per electrical code.
Important tips
- CRITICAL: Do not touch the pump while running — electrical shock risk.
- Never run the pump dry — operating without water damages the impeller and motor immediately.
- Mandatory grounding before connecting to power. Use proper ground wire and RCD-protected breaker.

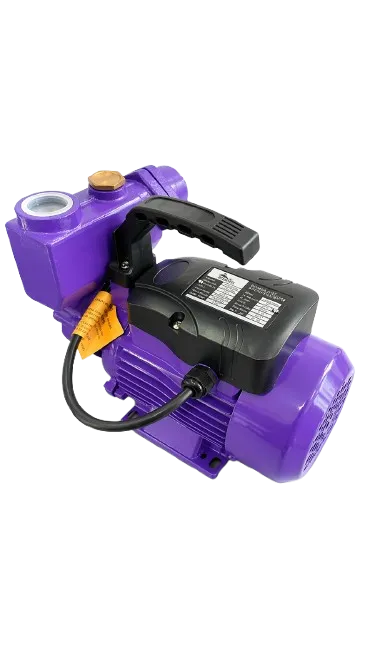

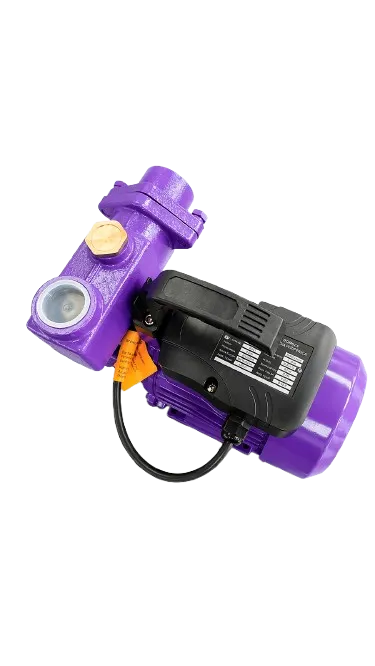

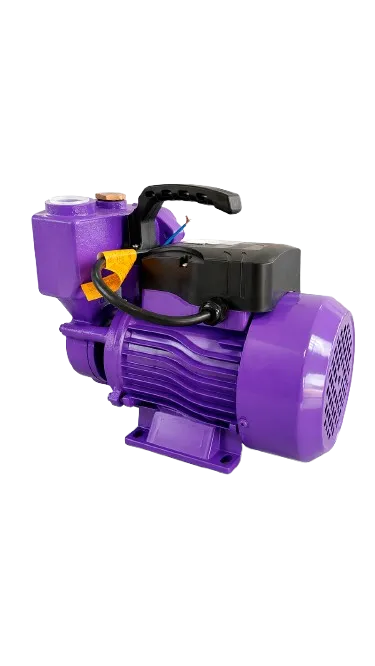

Gallery
See the product from different angles and in real applications.
Interested in this product?
Contact our specialists for more information.
Frequently Asked Questions
Common questions about specification, installation, and use.
A peripheral pump is a surface motor pump that uses a radial impeller with peripheral blades (curved edges) to generate high pressure. It operates above water, suitable for suction depths up to 7-9 meters and lifting water to great distances.
The QB80 has 1 HP (750W) with max flow of 3,300 L/h and head of 45m, ideal for larger homes and pressurization. The QB60 has 1/2 HP (370W) with flow up to 2,100 L/h and 35m head, ideal for apartments and smaller homes. Both available in 127V and 220V.
The check valve (foot valve) on the suction line prevents water from flowing back to the reservoir when the pump stops. It keeps the pipe primed and allows proper startup without manual re-priming. Without it, dry running may occur.
The QB80/QB60 line is designed for clean water at ambient temperature (up to 40°C). Not recommended for hot water, corrosive or flammable liquids, or fluids with high solid content. For those applications consult our technical team.
Maximum suction depth is 7 to 9 meters, depending on installation (pipe friction losses, altitude, temperature). For greater depths, use a submersible pump. Always install with a check valve on the suction line and keep piping leak-free.
