Record Flow 2,300 L/h
Highest flow in Atlantis vibratory line.

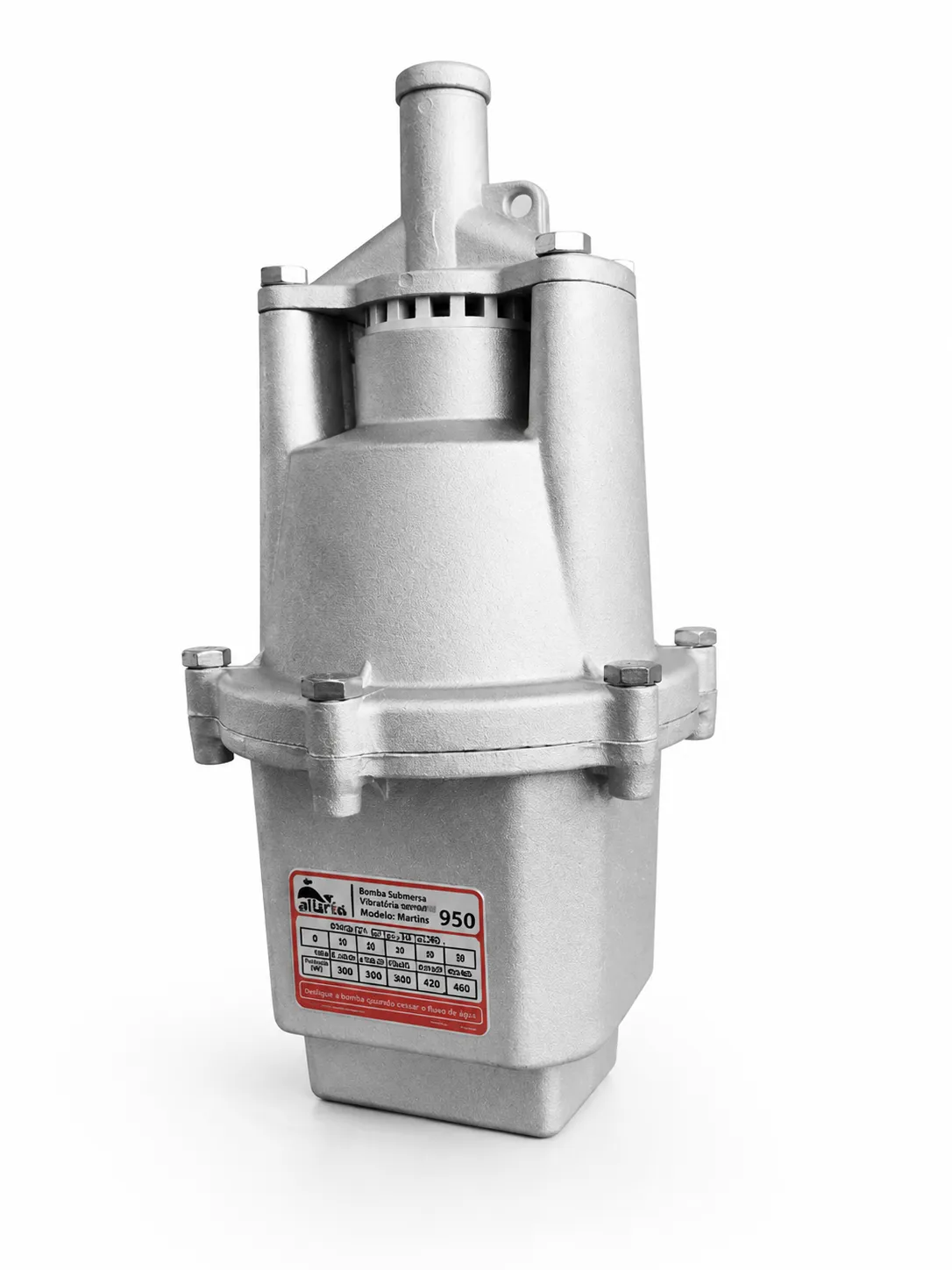

Master 950 Submersible Vibratory Pump
Top of the line: maximum SPEED and POWER in water transfers
The Atlantis Master 950 Submersible Vibratory Pump is the TOP-OF-THE-LINE in the vibratory category — ideal for those who need SPEED and POWER in water transfers.
ATLANTIS offers submersible pumps for the most diverse needs. Based on QUALITY, POWER, AND DURABILITY, they reach great elevations with low power and excellent cost-benefit.
Made with excellent raw materials for extended service life and INOX screws for greater durability.
Technological Innovation: Internal Protection Circuit
The Master 950 has an Internal Protection Circuit that prevents pump burnout when water is insufficient — protecting your investment.
- Power: 450W (0.6 HP)
- Diameter: 170 mm
- Height: 297 mm
- Outlet: 1" (largest in category)
- Max flow rate: 2,300 L/h
- Max elevation: 70 meters
- Voltages: 125V, 220V or 254V (60Hz)
1-year warranty against manufacturing defects.
Performance Curve
| Lift (m) | 0 | 10 | 20 | 40 | 60 | 70 |
|---|---|---|---|---|---|---|
| Average flow (L/h) | 2300 | 1900 | 1400 | 1000 | 750 | 600 |
Top of Vibratory Line
1-Year Warranty
Shipping Throughout Brazil
Specialized Technical Support
100% Made in Brazil
Elevation up to 70m
Power to reach high in demanding applications.
1" Wide Outlet
Larger outlet allows fast transfers with less turbulence.
Protection Circuit
Prevents burnout if water runs low.
Benefits
Developed to provide reliability in different clean water pumping applications.
Extreme Speed
Faster transfers with 2,300 L/h and 1" outlet.
Maximum Power
450W (0.6 HP) motor designed for intense continuous work.
Anti-Burnout
Internal circuit against dry-run — your pump protected.
Premium Build
INOX screws, resistant body and selected raw materials.
Applications
Suitable for clean water pumping in different contexts.
Intensive use on rural and commercial properties
Irrigation of large agricultural areas
Supply for buildings, condominiums and hotels
High-volume recalque between reservoirs
Technical Specifications
Reference values. Always consult the official product catalog.
Voltages
125V / 220V / 254V
Frequency
60 Hz
Power
450W (0.6 HP)
Max Flow Rate
2,300 L/h
Max Elevation
70 m
Diameter
170 mm
Height
297 mm
Outlet
1" (inch)
Protection
Internal circuit against dry-run
Screws
INOX (Stainless)
Warranty
1 year
Request a quote for the Master 950
Available Models
The line features variations of power, flow rate, and head.
Master 950 125V
Residential- Voltage: 125V
- Power: 450W
- Max Flow: 2,300 L/h
Top of Line
Master 950 220V
Top Line- Voltage: 220V
- Power: 450W
- Max Flow: 2,300 L/h
Master 950 254V
High Voltage- Voltage: 254V
- Power: 450W
- Max Flow: 2,300 L/h
Installation Guide
Follow the guidelines below as a general reference.
1
Check the mains voltage and choose the right model.
2
Install the pump inside the well respecting the 70m max elevation.
3
Connect outlet piping to the 1" output using adapters if needed.
4
Perform initial start paying attention to high flow (2,300 L/h) and check for leaks.
5
Protect the circuit with a 10A breaker and RCD per NBR 5410.
Important tips
- Intensive continuous use requires proper electrical sizing (10A breaker or higher).
- Do not use with flammable, corrosive liquids or sand/solids.
- As top-of-line, semiannual preventive maintenance is recommended under intensive use.
Gallery
See the product from different angles and in real applications.
Interested in this product?
Contact our specialists for more information.
Frequently Asked Questions
Common questions about specification, installation, and use.
The larger 1" outlet allows higher flow transfers (2,300 L/h) with less turbulence, reducing head losses over long piping runs.
Yes if you need more water volume per hour or frequently fill large reservoirs. For moderate home use, the Premium 850 offers great value.
Yes. All Master 950, Premium 850 and Compact 6" pumps feature the exclusive Internal Protection Circuit.
The Master 950 consumes 450W (0.6 HP). For 1 hour of continuous operation, consumption is approximately 0.45 kWh.
Yes. The Master 950 operates at any depth up to 70m. For shallow wells with moderate demand, the Premium 850 or Compact 6" may be more economical.
