Self-priming System
Automatically eliminates air from suction piping — prime once, operate always.
Self-priming Centrifugal Pump PJm-100S
1 HP single-stage self-priming pump for residential, building and small irrigation use — suction up to 9m and 40m head
The Atlantis Self-priming Centrifugal Pump PJm-100S is designed for residential and building use, serving small irrigation and light industrial applications — ideal for wells, cisterns and low-pressure networks.
The self-priming system removes air from the suction piping automatically, eliminating the need for constant pre-filling with water — just one initial priming during installation.
With high suction up to 9 meters and maximum head of 40 mca at peak pressure, the PJm-100S solves weak water supply problems in buildings up to 6 floors, houses with elevated water tanks and pressurization systems.
Main Specifications
- Power: 750W (1 HP)
- Voltage: 127V (220V models also available)
- Maximum flow: 2,900 L/h
- Maximum head: 40 m
- Maximum pressure: 40 mca
- High suction: up to 9 meters
- Inlet / Outlet: 1" / 1"
- Rotation: 3,450 RPM
- Material: Cast iron body, Noryl impeller
- Protection: IP44 — Class B insulation
- Warranty: 12 months
True self-priming: prime once, operate always!
12-Month Warranty
Shipping Throughout Brazil
Specialized Technical Support
Made in Brazil
Suction up to 9m
Draws water from wells, cisterns and reservoirs up to 9 meters deep.
40 mca Pressure
Head and pressure sufficient for buildings up to 6 floors.
Flow 2,900 L/h
Optimized flow for residential supply and small irrigation.
Benefits
Developed to provide reliability in different clean water pumping applications.
Automatic Self-priming
Real self-priming capability, eliminating air from piping without re-priming at every start.
High Suction (9m)
Suction up to 9 meters — reaches deep wells, cisterns and reservoirs easily.
Simplified Operation
Eliminates the need for foot valve and re-priming stops — install once and run.
Robust Construction
Cast iron body with Noryl impeller (technical polymer) for high durability and resistance.
Applications
Suitable for clean water pumping in different contexts.
Residences and homes with elevated water tanks
Wells and cisterns (suction up to 9m)
Buildings and condos up to 6 floors
Light industry and workshops
Small irrigation (farms, country properties)
Car washes and pressurization systems
Technical Specifications
Reference values. Always consult the official product catalog.
Power
750W (1 HP)
Voltage
127V (220V available)
Maximum Flow
2,900 L/h
Maximum Head
40 m
Max Pressure
40 mca
Maximum Suction
9 m
Inlet
1"
Outlet
1"
Rotation
3,450 RPM
Material
Cast iron body, Noryl impeller
Weight
11.7 kg
Dimensions (HxWxD)
22.5 x 42 x 19 cm
Protection
IP44 — Class B insulation
Discover the PJm-100S Pump — request a quote
Available Models
The line features variations of power, flow rate, and head.
Best Seller
PJm-100S 127V
1 HP- Power: 750W
- Voltage: 127V
- Flow: 2.900 L/h
Standard
PJm-100S 220V
1 HP- Power: 750W
- Voltage: 220V
- Flow: 2.900 L/h
Economy
PJm-60S 127V
1/2 HP- Power: 370W
- Voltage: 127V
- Flow: 2.100 L/h
Economy
PJm-60S 220V
1/2 HP- Power: 370W
- Voltage: 220V
- Flow: 2.100 L/h
Installation Guide
Follow the guidelines below as a general reference.
1
Before installation, ensure the pump is properly grounded according to safety standards (NBR 5410).
2
Install the pump vertically in a dry, ventilated location protected from rain and splashes. NEVER submerge in water.
3
Connect 1" suction piping to the inlet and 1" discharge piping to the outlet.
4
Initial priming: fill the pump and suction piping with water before first start. Subsequent starts are automatic.
5
Connect to the correct voltage (127V or 220V depending on model) and install a compatible breaker with RCD protection.
Important tips
- Mandatory grounding: before operating, ensure the pump is properly grounded according to electrical safety standards.
- NEVER touch the pump while it is operating. Risk of electric shock and burns from natural heating.
- DO NOT run the pump dry. Operating without water immediately damages the impeller and motor — voids warranty.
- Protect the motor from rain and direct splashes. Despite IP44, prolonged water exposure can cause electrical damage.
Vídeo

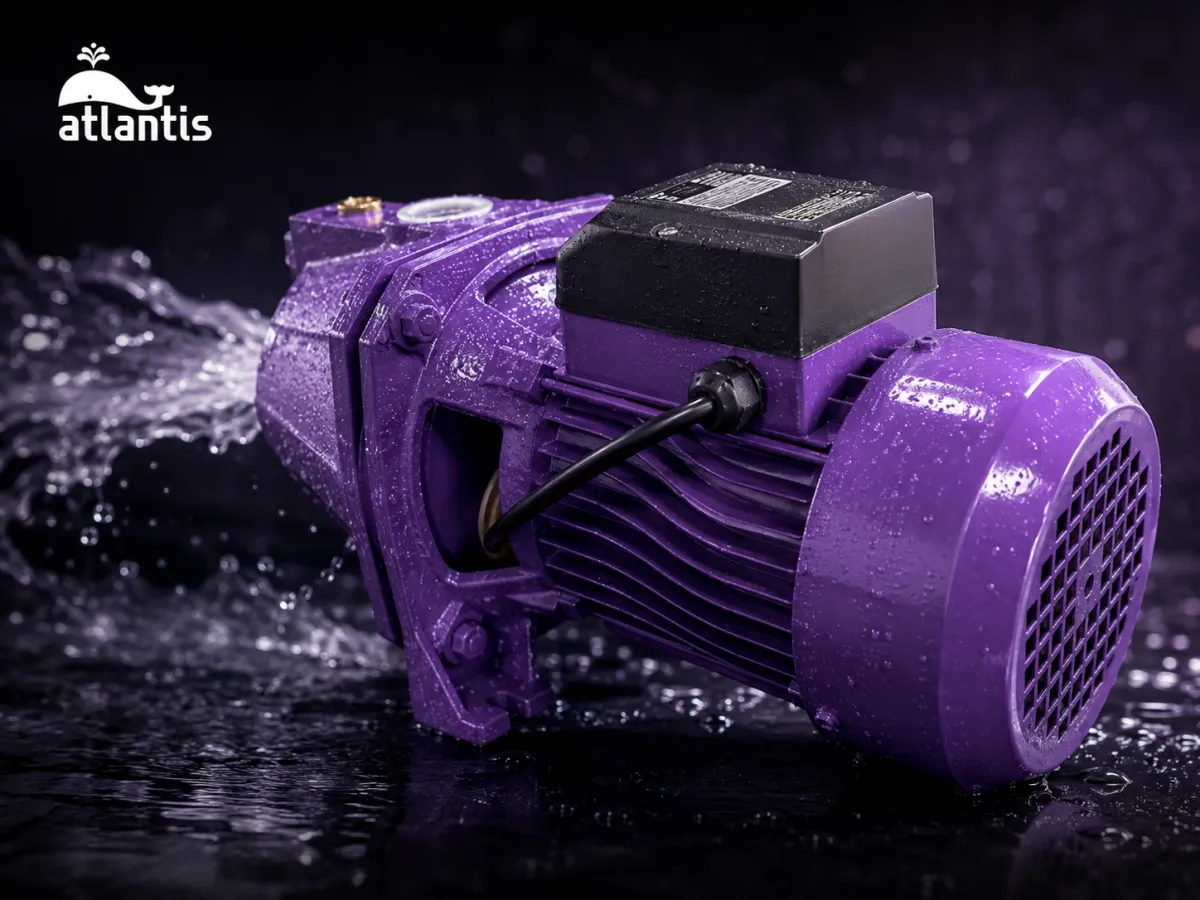

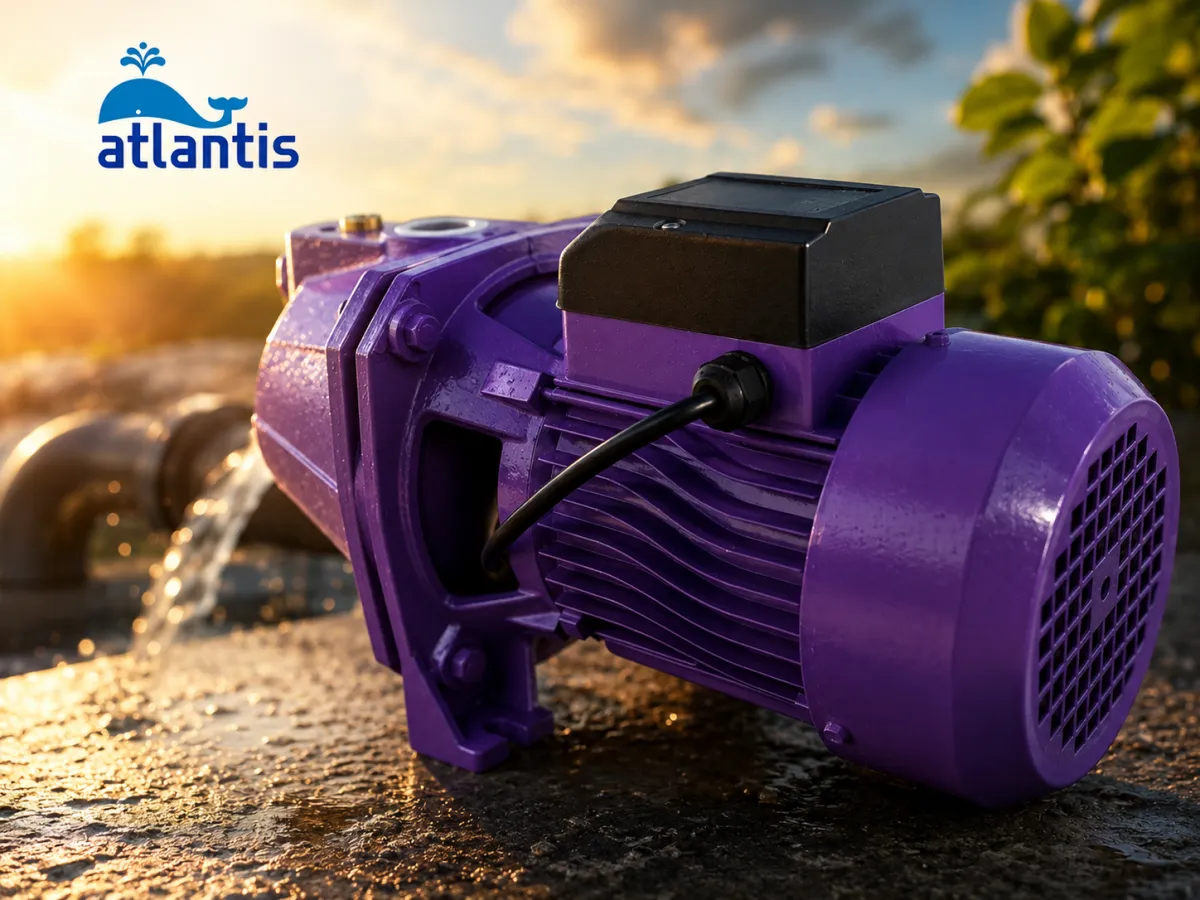

Gallery
See the product from different angles and in real applications.
Interested in this product?
Contact our specialists for more information.
Frequently Asked Questions
Common questions about specification, installation, and use.
It is a pump that combines centrifugal system (high flow) with self-priming capability — it has an internal diffuser that automatically eliminates air from suction piping, eliminating manual re-priming at every start. You prime once during installation and the pump maintains suction on its own.
The PJm-100S has 1 HP (750W), 2,900 L/h flow and 40m head, ideal for larger residences, buildings up to 6 floors and small irrigation. The PJm-60S has 1/2 HP (370W), 2,100 L/h flow and lower head, ideal for apartments, compact homes and lighter applications. Both versions are available in 127V and 220V.
Yes — one of the main applications. The PJm-100S has high suction up to 9 meters, sufficient for most cistern wells and shallow wells. For deeper artesian wells (over 9m), we recommend Atlantis submersible pumps. Remember to install the pump above the well level, NEVER submerged in water.
NO — this is the main advantage of the self-priming system. You prime (fill the pump and suction piping with water) only ONCE, at the initial installation. After that, the pump maintains suction automatically through the internal diffuser, even after long stops or loss of water column.
Yes — the PJm-100S is ideal for pressurizing buildings and condominiums up to 6 floors. With 40 mca maximum pressure, it ensures faucets, showers and toilets work with adequate force even on higher floors. For buildings taller than 6 floors, consult a professional for proper sizing.
