Self-priming System
Internal Venturi tube automatically eliminates air from suction piping — prime once, operate always.

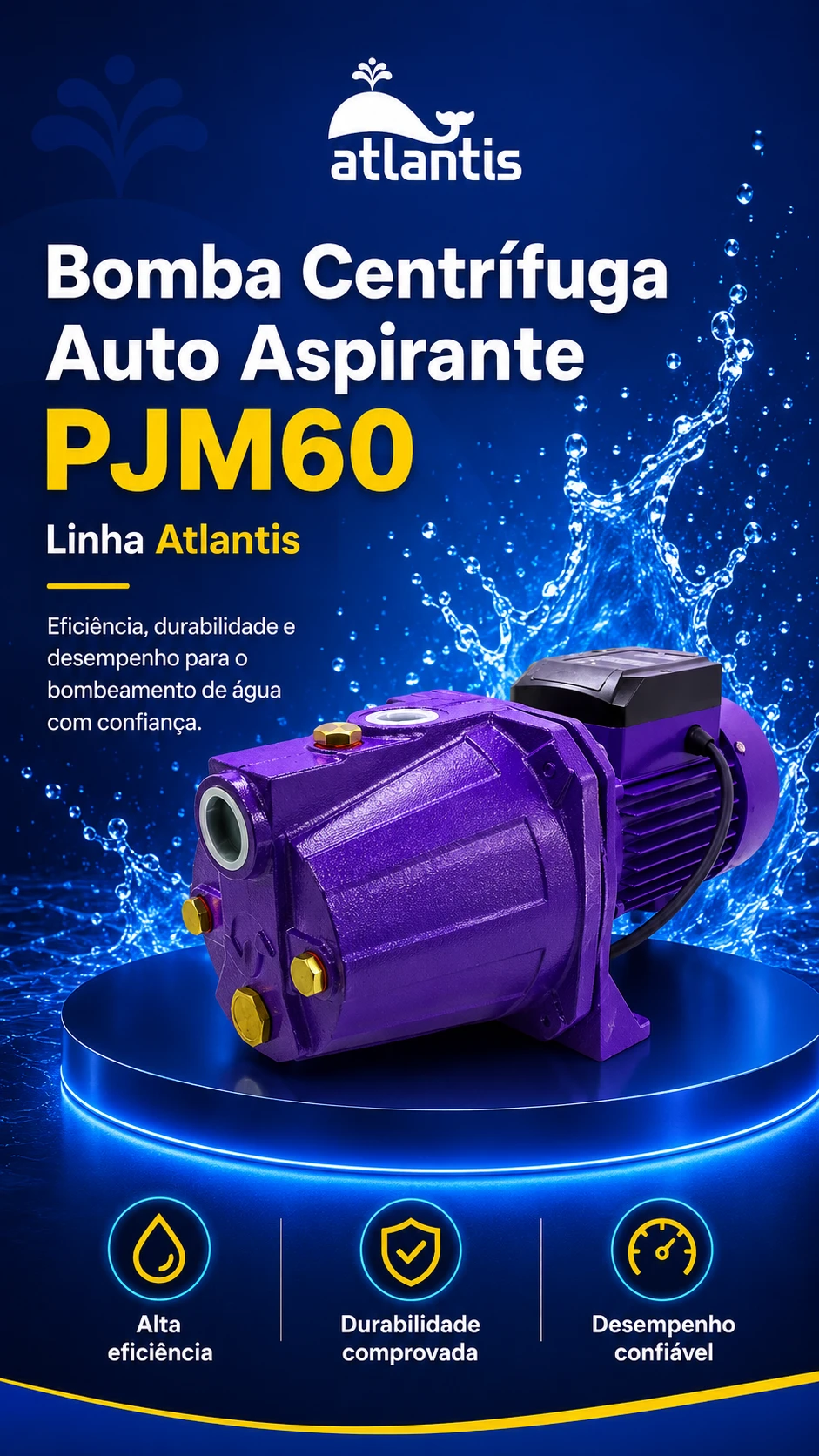

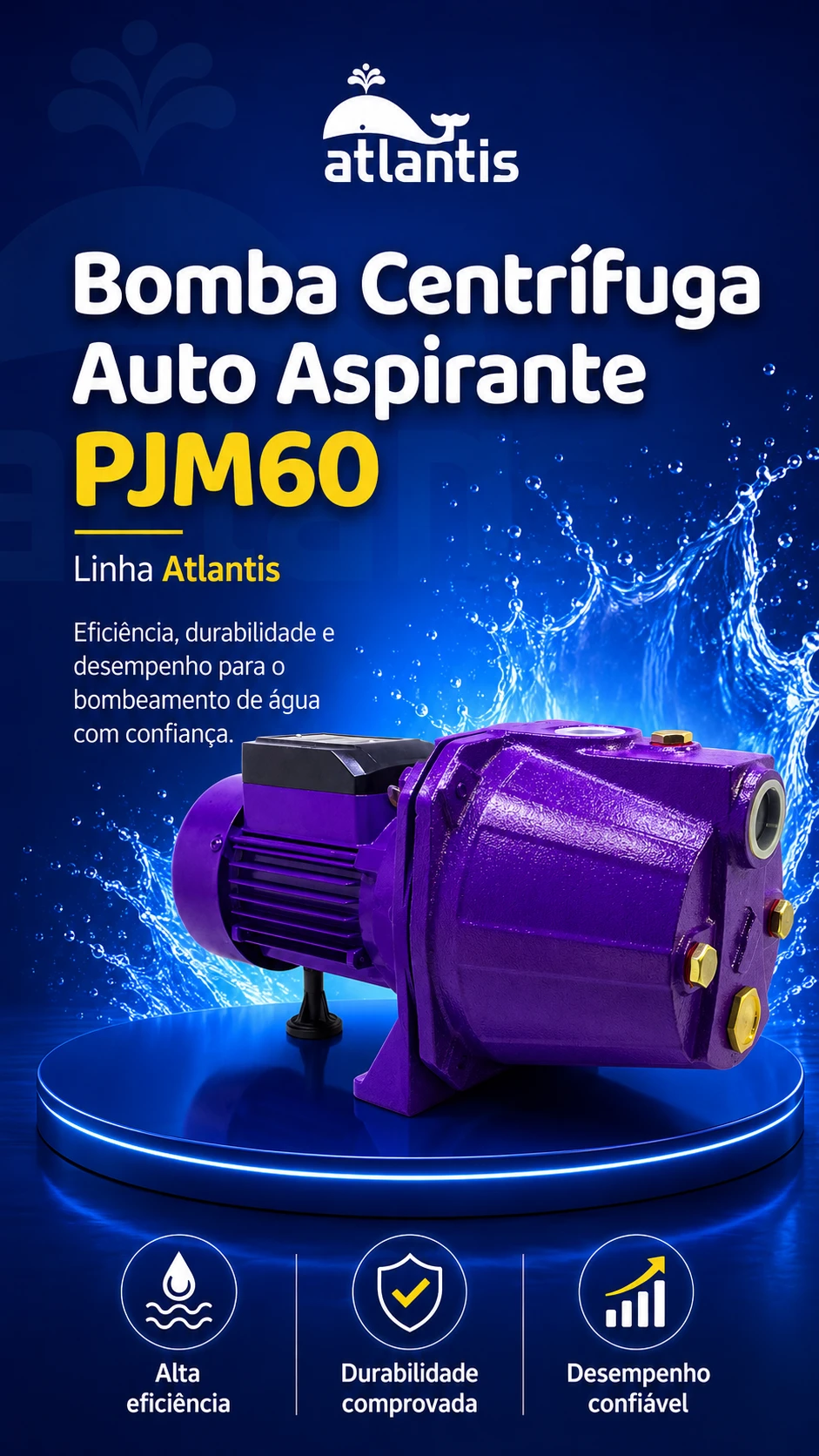

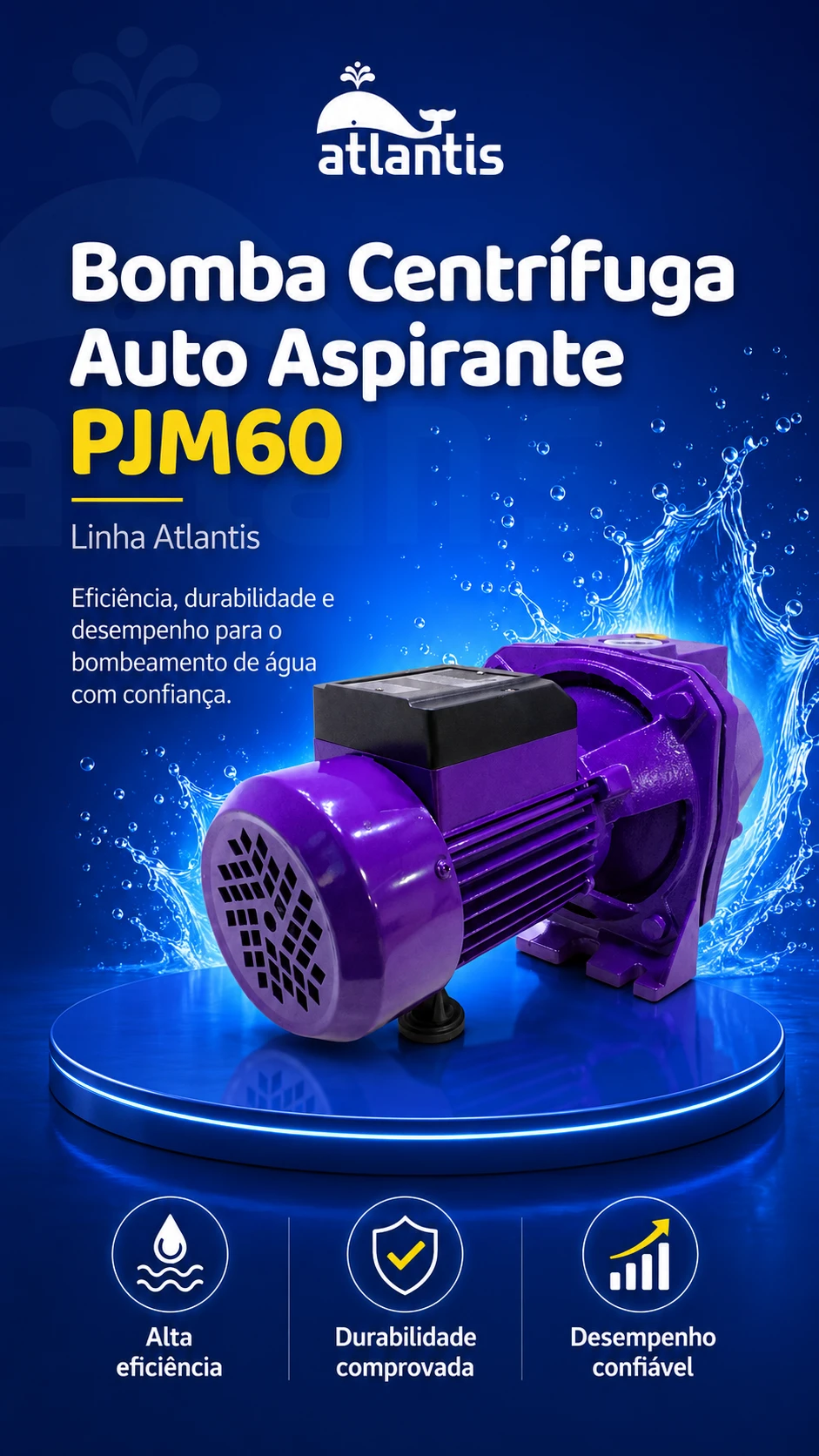

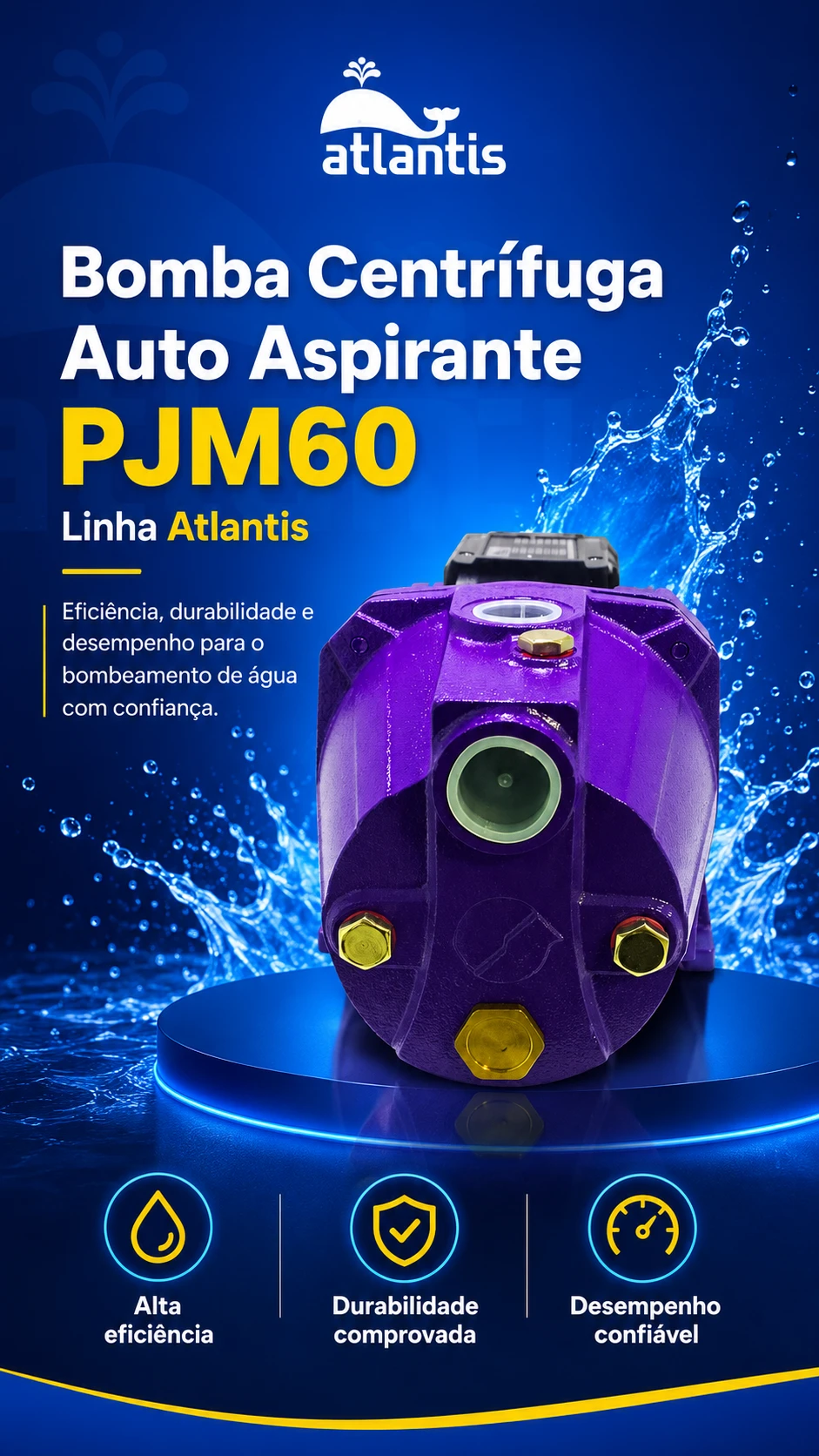

Self-priming Centrifugal Pump PJm-60
1/2 HP single-stage self-priming pump for residential, building and small irrigation use — suction up to 9m and 28m head
The Atlantis Self-priming Centrifugal Pump PJm-60 is designed for residential and building use, serving small irrigation and light industrial applications — ideal for wells, cisterns and low-pressure networks.
The self-priming system, with an internal Venturi tube, removes air from the suction piping automatically, eliminating the need for constant pre-filling with water — just one initial priming during installation.
With high suction up to 9 meters and maximum head of 28 mca at peak pressure, the PJm-60 solves weak water supply problems in homes, buildings up to 6 floors and pressurization systems — eliminating the need for a foot valve.
Main Specifications
- Power: 370W (1/2 HP)
- Voltage: 127V (220V models also available)
- Maximum flow: 2,900 L/h
- Maximum head: 28 m
- Maximum pressure: 28 mca
- High suction: up to 9 meters
- Inlet / Outlet: 1" / 1"
- Rotation: 3,450 RPM
- Material: Cast iron body, Noryl impeller
- Protection: IP44 — Class B insulation
- Warranty: 12 months
True self-priming: prime once, operate always!
12-Month Warranty
Shipping Throughout Brazil
Specialized Technical Support
Suction up to 9m
Draws water from wells, cisterns and reservoirs up to 9 meters deep.
28 mca Pressure
Head and pressure sufficient for homes and buildings up to 6 floors.
Flow 2,900 L/h
Optimized flow for residential supply and small irrigation.
Benefits
Developed to provide reliability in different clean water pumping applications.
Automatic Self-priming
Real self-priming capability, eliminating air from piping without re-priming at every start.
High Suction (9m)
Suction up to 9 meters — reaches deep wells, cisterns and reservoirs easily.
Simplified Operation
Easy operation without the need for a foot valve — install once and run.
Robust Construction
Cast iron body with Noryl impeller (technical polymer) for high durability and resistance.
Applications
Suitable for clean water pumping in different contexts.
Residences and homes with elevated water tanks
Wells and cisterns (suction up to 9m)
Buildings and condos up to 6 floors
Light industry and workshops
Small irrigation (farms, country properties)
Car washes and pressurization systems
Discover the PJm-60 Pump — request a quote
Available Models
Discover other products in this category.
Self-priming Centrifugal Pump PJm-100S
View DetailsInstallation Guide
Follow the guidelines below as a general reference.
1
Before installation, ensure the pump is properly grounded according to safety standards (NBR 5410).
2
Install the pump vertically in a dry, ventilated location protected from rain and splashes. NEVER submerge in water.
3
Connect 1" suction piping to the inlet and 1" discharge piping to the outlet.
4
Initial priming: fill the pump and suction piping with water before first start. After that, self-priming is automatic.
5
Connect to the correct voltage (127V or 220V depending on model) and install a compatible breaker with RCD protection.
Important tips
- Mandatory grounding: before operating, ensure the pump is properly grounded according to electrical safety standards.
- NEVER touch the pump while it is operating. Risk of electric shock and burns from natural heating.
- DO NOT run the pump dry. Operating without water immediately damages the impeller and motor — voids warranty.
- Protect the motor from rain and direct splashes. Despite IP44, prolonged water exposure can cause electrical damage.
Interested in this product?
Contact our specialists for more information.
Frequently Asked Questions
Common questions about specification, installation, and use.
It is a pump that combines centrifugal system (high flow) with self-priming capability — it has an internal Venturi tube that automatically eliminates air from suction piping, eliminating manual re-priming at every start. You prime once during installation and the pump maintains suction on its own.
The PJm-60 has 1/2 HP (370W) and 28m head, ideal for homes, apartments and lighter applications. The PJm-100S has 1 HP (750W) and 40m head, suited for larger demands and taller buildings. Both have a self-priming system and are available in 127V and 220V.
Yes — one of the main applications. The PJm-60 has high suction up to 9 meters, sufficient for most cistern wells and shallow wells. For deeper artesian wells (over 9m), we recommend Atlantis submersible pumps. Remember to install the pump above the well level, NEVER submerged in water.
NO — this is the main advantage of the self-priming system. You prime (fill the pump and suction piping with water) only ONCE, at the initial installation. After that, the pump maintains suction automatically through the internal Venturi tube, even after long stops or loss of water column.
Yes — the PJm-60 is ideal for pressurizing homes and buildings up to 6 floors. With 28 mca maximum pressure, it ensures faucets, showers and toilets work with adequate force. For larger demands or taller buildings, consider the PJm-100S or consult a professional for proper sizing.
